Differences Between Electrolytic Capacitors and Normal Capacitors

Electrolytic capacitors and normal capacitors, also known as ceramic or film capacitors, are two common types of capacitors used in electronic circuits. While both capacitors store and release electrical energy, they have distinct differences in construction, working principle, and performance characteristics. Here is a comprehensive overview of the differences between electrolytic capacitors and normal capacitors:

Construction:

• Electrolytic Capacitor: Electrolytic capacitors consist of two conductive plates separated by a dielectric material, usually an electrolyte. The plates are made of aluminum or tantalum, and the dielectric is formed by a layer of oxide that develops on the plate's surface. The electrolyte acts as the second plate, creating a large capacitance value in a compact size.

• Normal Capacitor: Normal capacitors, including ceramic and film capacitors, have a similar construction. They consist of two conductive plates separated by a dielectric material, which can be ceramic, plastic film, or paper. The dielectric material determines the capacitor's characteristics, such as capacitance value and voltage rating.

Capacitance Value:

• Electrolytic Capacitor: Electrolytic capacitors have relatively high capacitance values ranging from microfarads (µF) to farads (F). They are capable of storing a significant amount of charge and are commonly used in applications that require large capacitance values, such as power supply filtering and audio amplification.

• Normal Capacitor: Normal capacitors typically have lower capacitance values compared to electrolytic capacitors. They are available in a wide range of values, from picofarads (pF) to microfarads (µF). Normal capacitors are suitable for various applications, including decoupling, timing, coupling, and noise suppression.

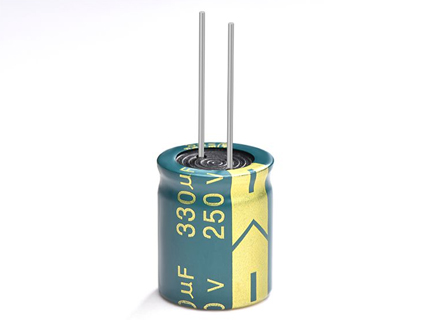

 Electrolytic Capacitor

Voltage Rating:

• Electrolytic Capacitor: Electrolytic capacitors have higher voltage ratings compared to normal capacitors. They can handle voltage levels ranging from several volts to several hundred volts. This makes them suitable for applications that require high voltage operation, such as power supply circuits.

• Normal Capacitor: Normal capacitors have lower voltage ratings compared to electrolytic capacitors. Their voltage ratings typically range from a few volts to a few hundred volts, depending on the specific type and application. They are commonly used in low to medium voltage circuits.

Polarized vs. Non-Polarized:

• Electrolytic Capacitor: Electrolytic capacitors are polarized, meaning they have a positive and negative terminal. The correct polarity must be observed during installation, as reversing the polarity can cause the capacitor to fail or even rupture. Electrolytic capacitors are typically marked with a positive (+) and negative (-) symbol to indicate the correct orientation.

• Normal Capacitor: Normal capacitors, such as ceramic and film capacitors, are non-polarized. They can be connected in either direction without the risk of polarity-related issues. This makes them easier to use and more forgiving in circuit designs.

Frequency Response:

• Electrolytic Capacitor: Electrolytic capacitors have limited frequency response compared to normal capacitors. They are not suitable for high-frequency applications due to their inherent inductance and higher equivalent series resistance (ESR). Electrolytic capacitors are commonly used in low-frequency applications, such as power supply filtering and coupling.

• Normal Capacitor: Normal capacitors, especially ceramic capacitors, have a wide frequency response and are suitable for both low and high-frequency applications. They have low ESR and can handle high-frequency signals effectively. Ceramic capacitors, in particular, are commonly used in high-frequency circuits, decoupling, and noise suppression applications.
