How Do I Choose a Capacitor for a Circuit?

A capacitor is an essential component in electronic circuits used for storing electrical energy. It is a passive two-terminal electronic component that stores energy in an electric field. Capacitors are used in various applications, such as filtering, timing, coupling, and decoupling, and choosing the right capacitor is crucial for circuit performance. In this article, we will discuss the factors that should be considered when choosing a capacitor for a circuit.

Capacitance:

The first factor to consider when selecting a capacitor is its capacitance. Capacitance is the ability of a capacitor to store electrical charge. It is measured in Farads (F), but in practical applications, it is usually expressed in microfarads (µF) or picofarads (pF). The capacitance required for a circuit depends on the specific application and the required frequency response. For example, in filtering applications, larger capacitance values are required to filter out low-frequency signals. In timing applications, smaller capacitance values are needed for accurate timing.

Voltage rating:

The second factor to consider when selecting a capacitor is its voltage rating. The voltage rating of a capacitor is the maximum voltage it can withstand without breaking down. It is essential to choose a capacitor with a voltage rating that is higher than the maximum voltage expected in the circuit. A capacitor with a lower voltage rating than required may fail and cause damage to the circuit or even lead to a safety hazard.

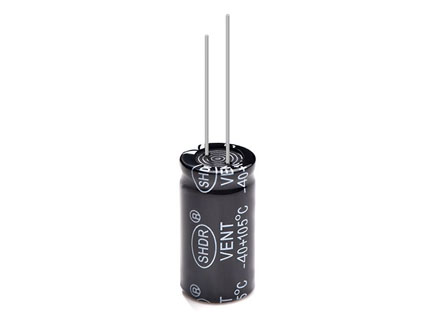

 Electrolytic Capacitor

Tolerance:

The third factor to consider when selecting a capacitor is its tolerance. Tolerance refers to the amount by which the actual capacitance of the capacitor can differ from its nominal value. Capacitors usually have a tolerance of ±5%, ±10%, or ±20%. When choosing a capacitor, it is essential to consider the tolerance and ensure that the actual capacitance falls within the required tolerance range.

Temperature coefficient:

The fourth factor to consider when selecting a capacitor is its temperature coefficient. The temperature coefficient of a capacitor is the change in capacitance that occurs with a change in temperature. Capacitors with a high-temperature coefficient may not be suitable for applications that require stable capacitance over a wide range of temperatures.

Frequency response:

The fifth factor to consider when selecting a capacitor is its frequency response. The frequency response of a capacitor refers to its ability to pass or block signals of different frequencies. Capacitors with a high capacitance value are better at passing low-frequency signals, while capacitors with a low capacitance value are better at passing high-frequency signals. When choosing a capacitor for a specific application, it is essential to consider the required frequency response and choose a capacitor that can provide the required performance.

Size and cost:

The size and cost of a capacitor are also essential factors to consider when selecting a capacitor for a circuit. Capacitors come in different sizes, and larger capacitance values require larger capacitors. It is essential to consider the available space on the circuit board and choose a capacitor that fits within the available space. The cost of a capacitor also varies depending on the type, size, and performance. It is essential to choose a capacitor that meets the required performance criteria while staying within the budget.
