SHDR® Application Notes
一. Caution DuringCircuitDesign
1. Please make sure the application and mounting
Conditiorts to which the capacitor will be exposed
are within the conditions specified in the catalog
or alternate product specification (Referred as to
2. Design Aluminum Electrolytic Capacitors, please
pay attentiontothe points listed below.
(1). The capacitor shall not be used in en ambient
temperature which exceeds the operating
temperature pacified in the specification.
(2). Do not apply excessive current which exceeds
the allowableripple current .
(3). Make sure that no excess voltage (that is
higher than the rated voltage)is applied to the
capacitor.
(a). Please pay attention so that the peak
voltage, which is DC voltage overlapped
by ripple current,will not exceed the rated
voltage.
(b). In the case where more than 2 aluminum
electrolytic capacitors are used in series
please make sure that applied voltage will
be lowor than rated Volrage and the voltage
be will applied to each capacitor equally
using a balancing resistor in parallel with
the capadtors.
(4). Aluminum electroiytic capacitors are poiartzed.
Make surethatno reversevoltage or AC voltage
is applied to the capacitors. Please use Bi-polar
capacitors for a circuit that can possibly see
reversed polarity. Even Bi-polar capedtorcan
not be USed for ac voltage application.
3. Appropriate capacitors which comply with the life
requirement of the products should be selected
when designing the circuit.
4. For a drcuit that repeats rapid charging discharging
of electricity, an appropriate capacitor that is
capable ofenduringsuch a condition must be used.
5. Aluminum case, cathode lead wire, anode lead
wire and circuit pattern must be isolatad.
6. The sleeve of cepacitoreisnot recognized as an
insulator, and therefore, the standard capacitor
should not be uesd in a place where insulation
function is needed.Please consult with us should
you require a higher grade of insulating sleeve.
7. Capadtors may fail if they are used under the
following conditions.
(1). Damp conditions such as water, saltwater spray,
or oil spray or fumes. High humidity or humidity
condensebon sttuations.
(2). In an atmosphere filled with toxic gasses (such
as hydrogen sulfide, sulfurous acid, nitrous acid,
chlorine. ammonia, etc. )
(3). Being exposed to direct sunlight, ozone, ultraviolet
ray, or radiation.
(4). Being exposed to acidic or alkaline solutions
(5). Under severe conditions where vibration and/or
mechanical shock exceed the applicable ranges
of the specification.
8. In designing a circuit, the following matters should
be ensured in advancetothe capacitor assemblyon
the P.C. board.
(1). Design the appropriate hole spacing to match
the lead pitch ofcapacitors
(2). Do not locate any wiring and clrcuit patterns
dirsctly above the capacitor vent, Ensure enough
free space above the capacitor vent.
(3). Do not design a circuit board so that heat
generating components are placed near an
aluminum electrolvtic capacitor Or reverse side
ofP.C. board (under the capacitor).
9. Electrical characteristics may vary depending on
changes in temperature and frequency. Please
consider this variation when you design drcuits.
10.When you mount capacitorson the double-sided
P.C boards, do not place capecttors on circuit
patterns oroveron unused holes.
11. When you install more than 2 capacitors in parallel,
considerthe balance of current flowing through the
capacitors.
12. If more than 2 aluminum electrolytic capacitors are
used in seriesmake sure the applied voltage will
be lower than the rated voltage and that voltage
will be applied to each capacitor equally using
balancing resistor in parallel witt each capacitor.

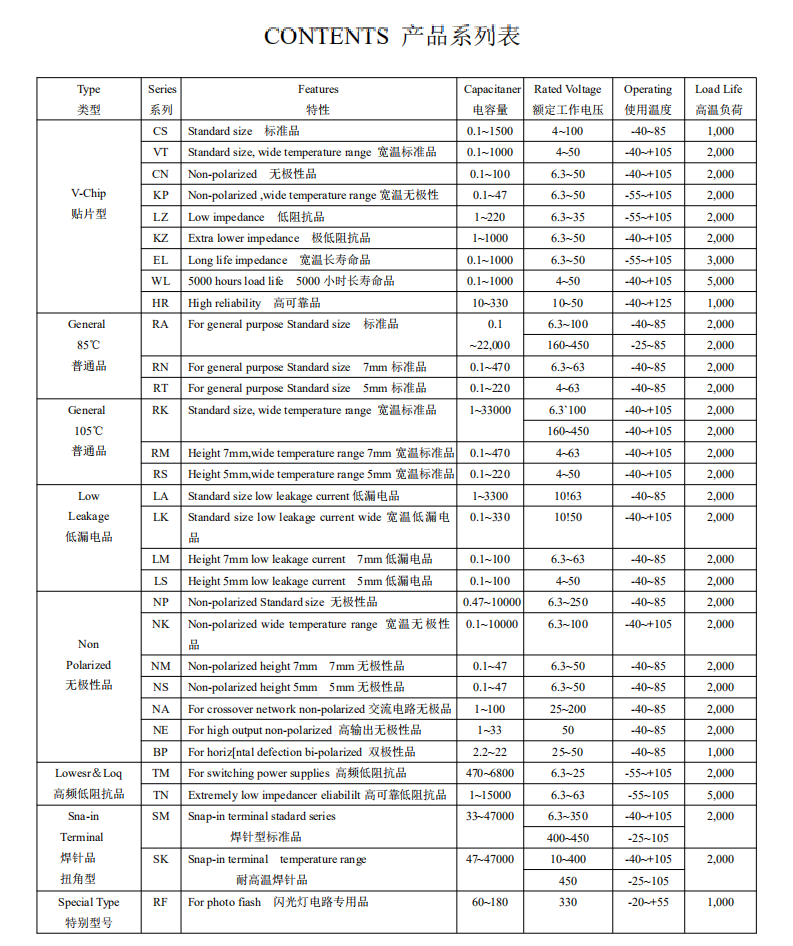

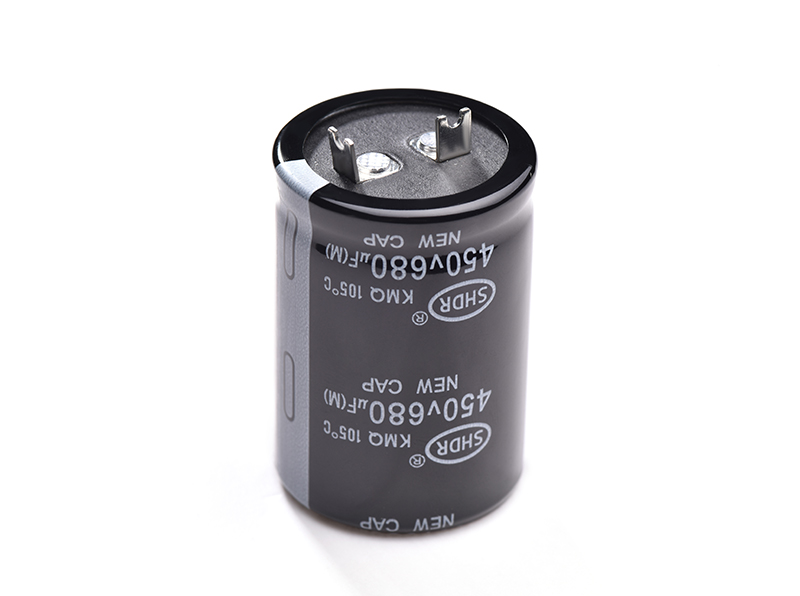

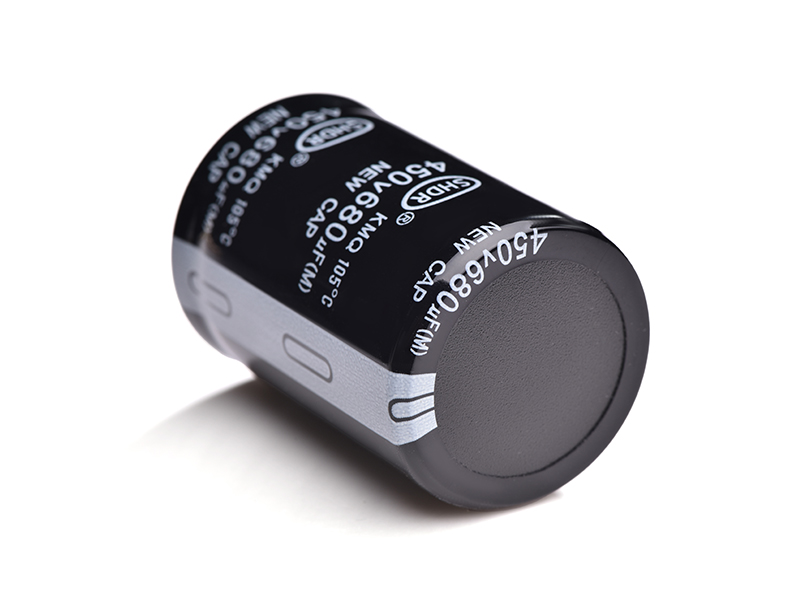

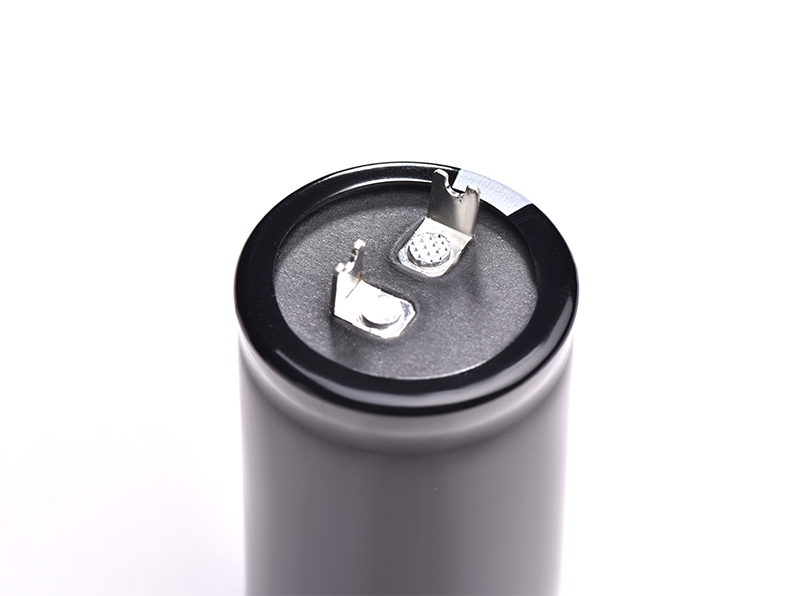

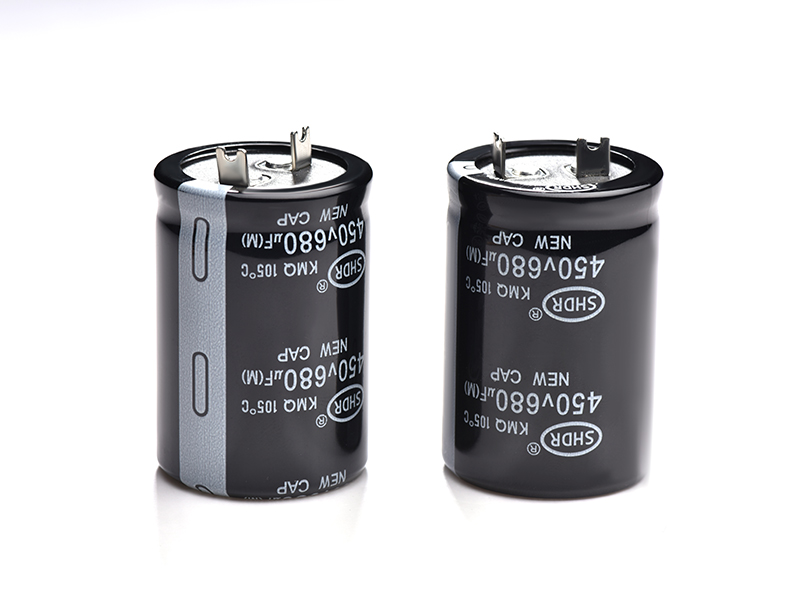

Product Picture
